Here is the build up of F-Toy 128. I picked up the chassis in Feb and started gathering more parts and began tear down of my 91 ex cab. The chassis was already welded on an 89short bed frame and had inbd spring mounts installed. My goal was to have a 3 seater trail rig that could also be able to compete in rock crawling and dirt riot type events. Wish me luck.

89 short bed frame
22re moved back 5"
5.29s
detroits f/r
30 spline longs
duals 2.28/4.7 twin sticked
inbd springs 5"TG rear 2 leafs removed 4"TG front 2 leafs removed


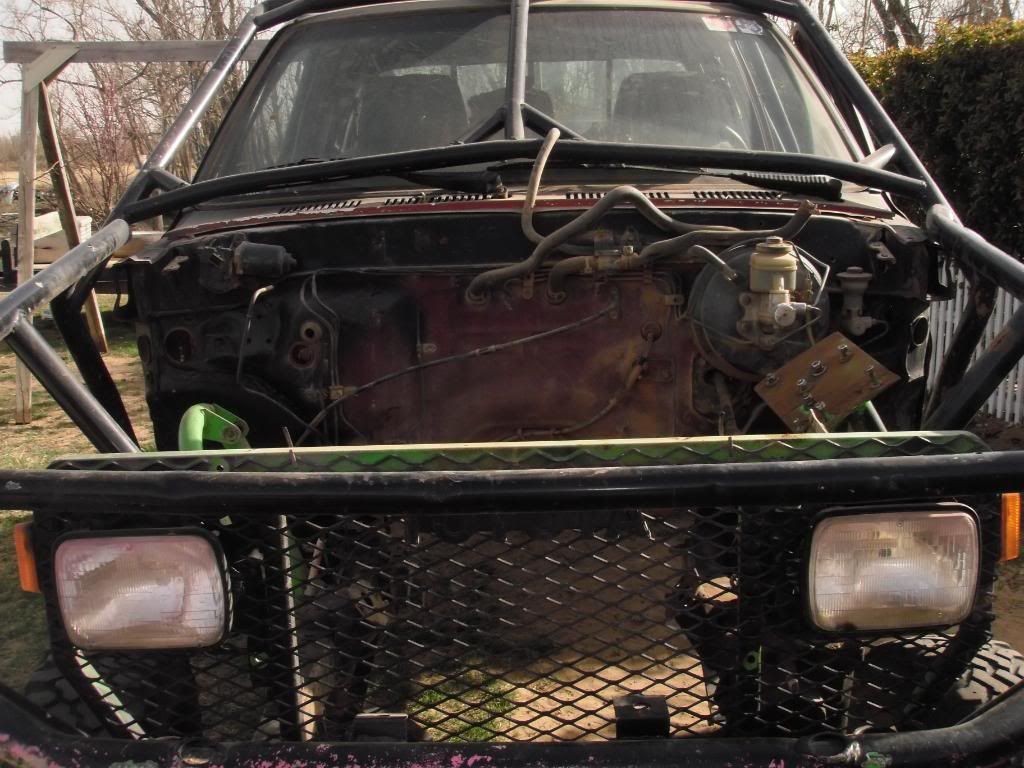

The 91 donor (eng,complete wire harness, axles,etc.....)

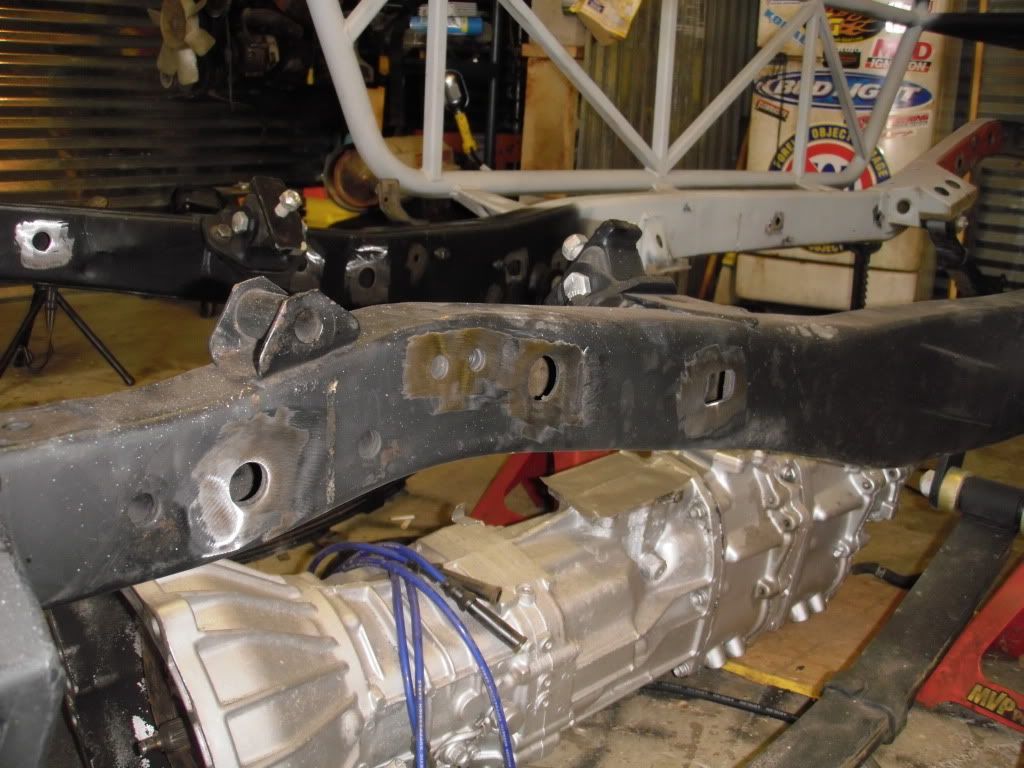

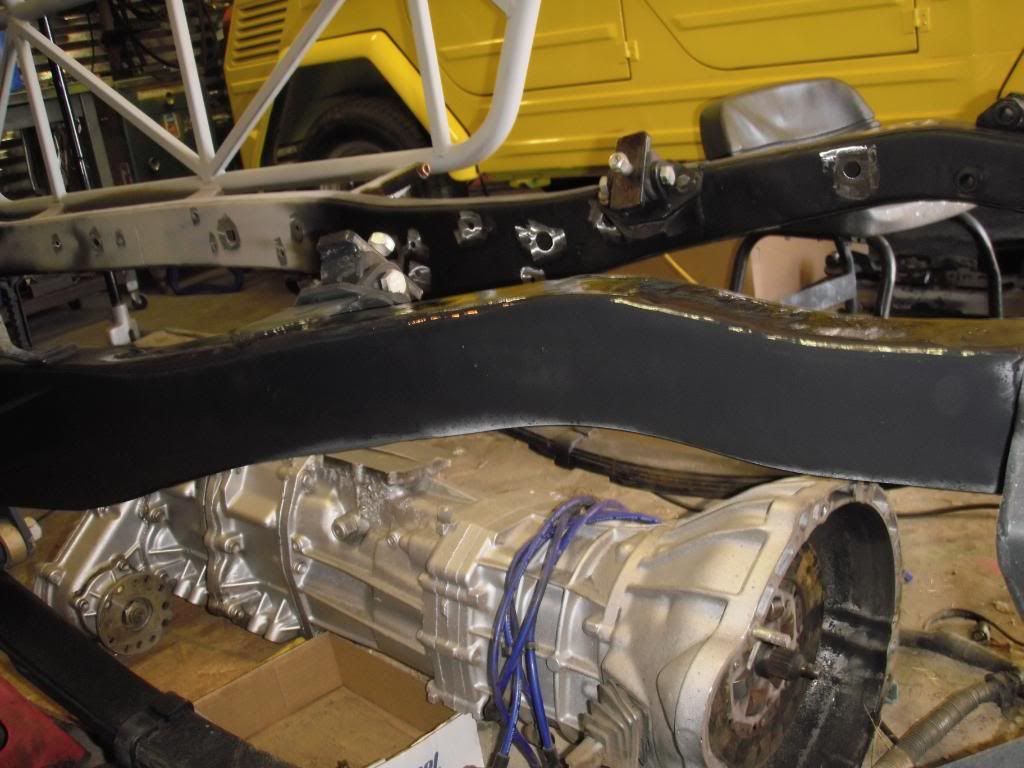

Started cleaning up the frame. Welded all the holes closed on the outside.

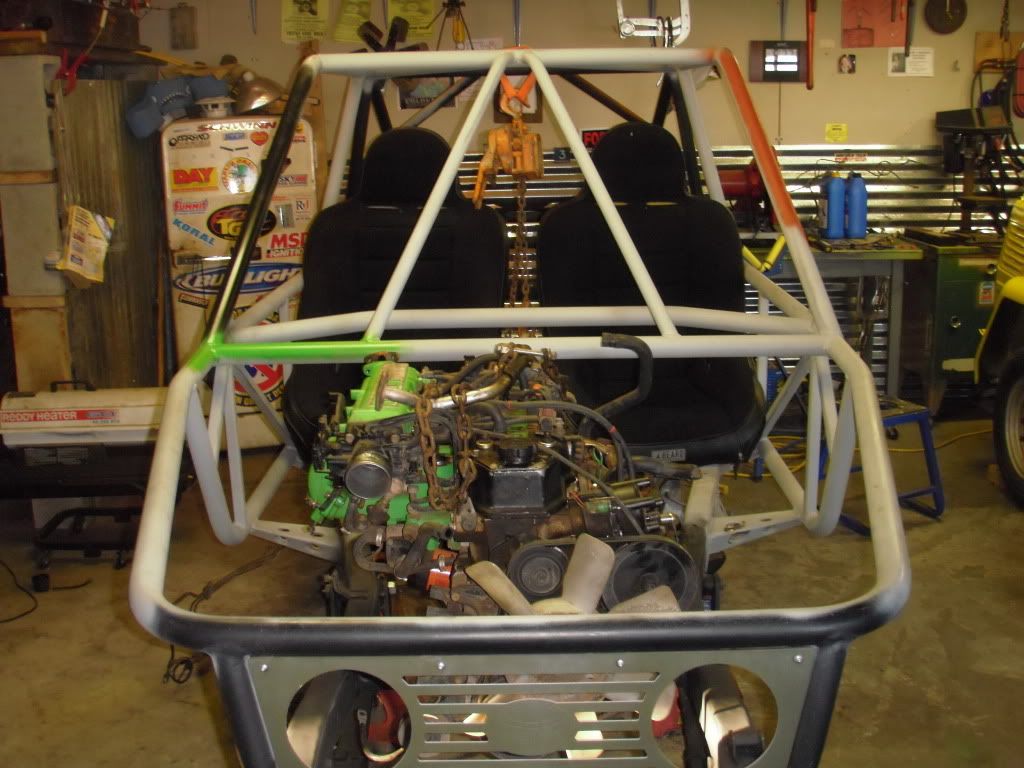

Mock up
Seats

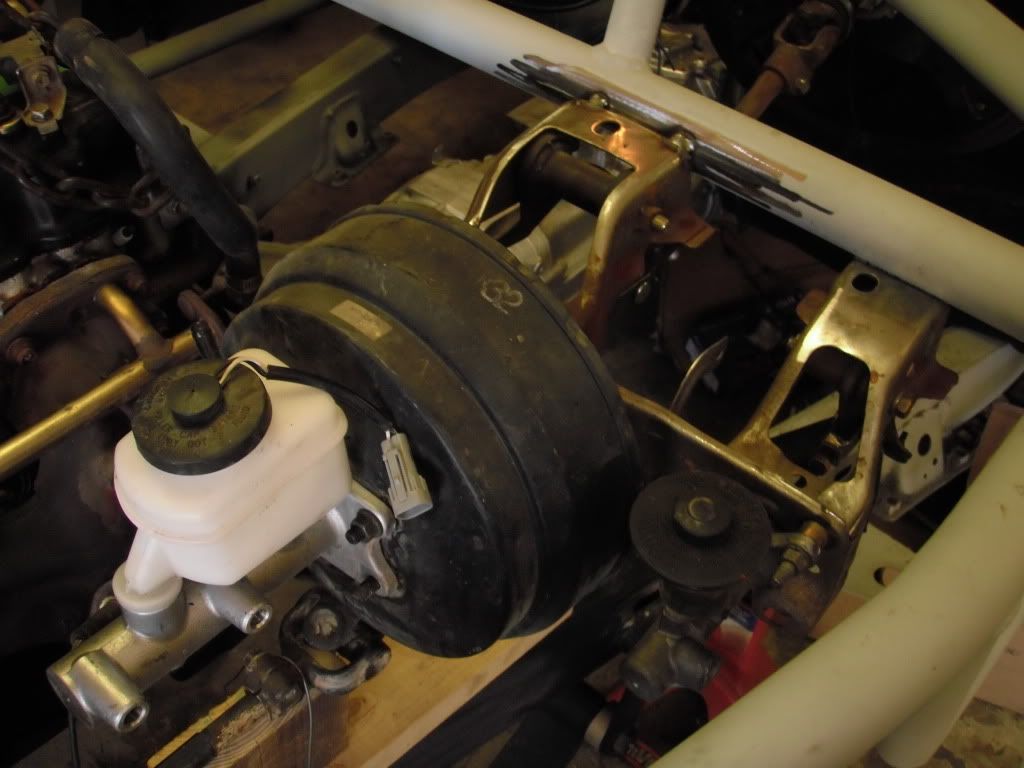

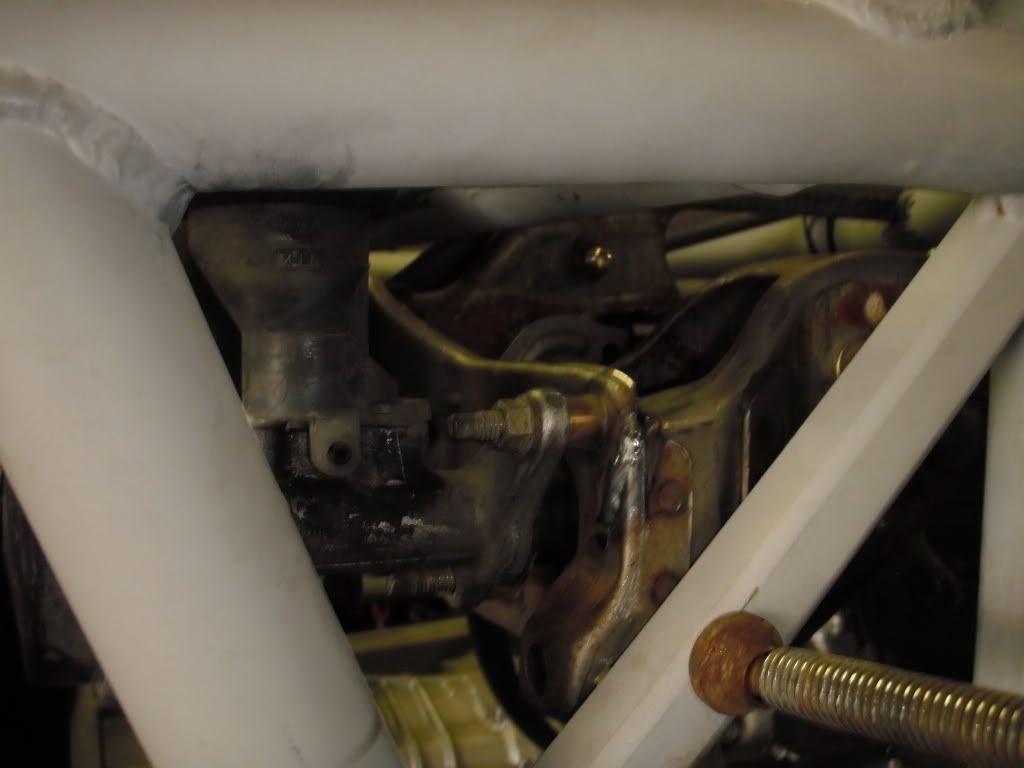

Pedals/Steering shaft






More to come.



·
Registered
Joined
·
84 Posts
Discussion Starter #3
I was happy with the placement of the seats,pedals, and steering. So time to start the floor framework and cross member.







A sign of progress in any build. The Roller.



Two piece front drive shaft.







Gas tank and battery.



After hours of research on the PBB I have decided to use the factory EFI wire harness for this build. I removed EVERY wire from the 91 ex cab and labeled each connection. I cut out everything that didnt have anything to do with the operation of the engine. I have yet to cut down the engine harness at this time but all the unwanted items are disconnected. All the factory sending units will be used temp,oil,tach, spedometer,volts, and the CEL. Yes the factory dash will be used.
